Built from
sixteen-gauge.
Custom ductwork, architectural panels, and decorative metalwork — fabricated by hand, finished to spec, delivered without shortcuts.
"We handed him a napkin sketch of a radius soffit and got back something the architect actually framed. Tightest seams I've seen outside a shop that charges three times as much."
Marcus Delacroix
Project Manager · Delacroix General Contracting
Radius Soffit Panel · Brushed 16ga
Trusted by contractors and architects across the region
How Custom Ductwork
Gets Quoted
Most contractors get burned by vague estimates. Here's exactly how pricing works when you bring a job to a fabrication shop — so you can scope it right from the start.
Drawings or dimensions first
A clear sketch — even hand-drawn — beats a verbal description every time. Throat diameter, offset dimensions, connection type (slip, drive, TDC flange), and material. If you have a mechanical drawing, attach it. If you don't, a photo of the existing piece with a tape measure in frame works.
Material drives the number
Galvanized is the workhorse — it's the cheapest to buy and fastest to cut. Stainless costs two to three times more per pound and takes longer to weld clean. Copper is priced by the day it ships. Aluminum sits in the middle. If you're flexible, say so — I'll tell you what makes sense.
Quantity matters more than you think
One-offs carry full setup time. If you need twelve identical transitions, the per-piece price drops because I program the brake once and run the batch. Tell me if this is a one-time custom or part of a recurring job.
Finish and tolerance
Raw edges and mill finish ship fastest. Ground seams, mirror polish, or painted finish add time. Tolerances tighter than ±1/16" require fixturing — that's a conversation before I quote, not a surprise on delivery.
Rule of Thumb
If the fitting has more than three angles, a tapered section, or connects two round-to-square transitions, plan for a full-custom quote — not a catalog price.
Typical Turnaround
Recent Ductwork & Transitions

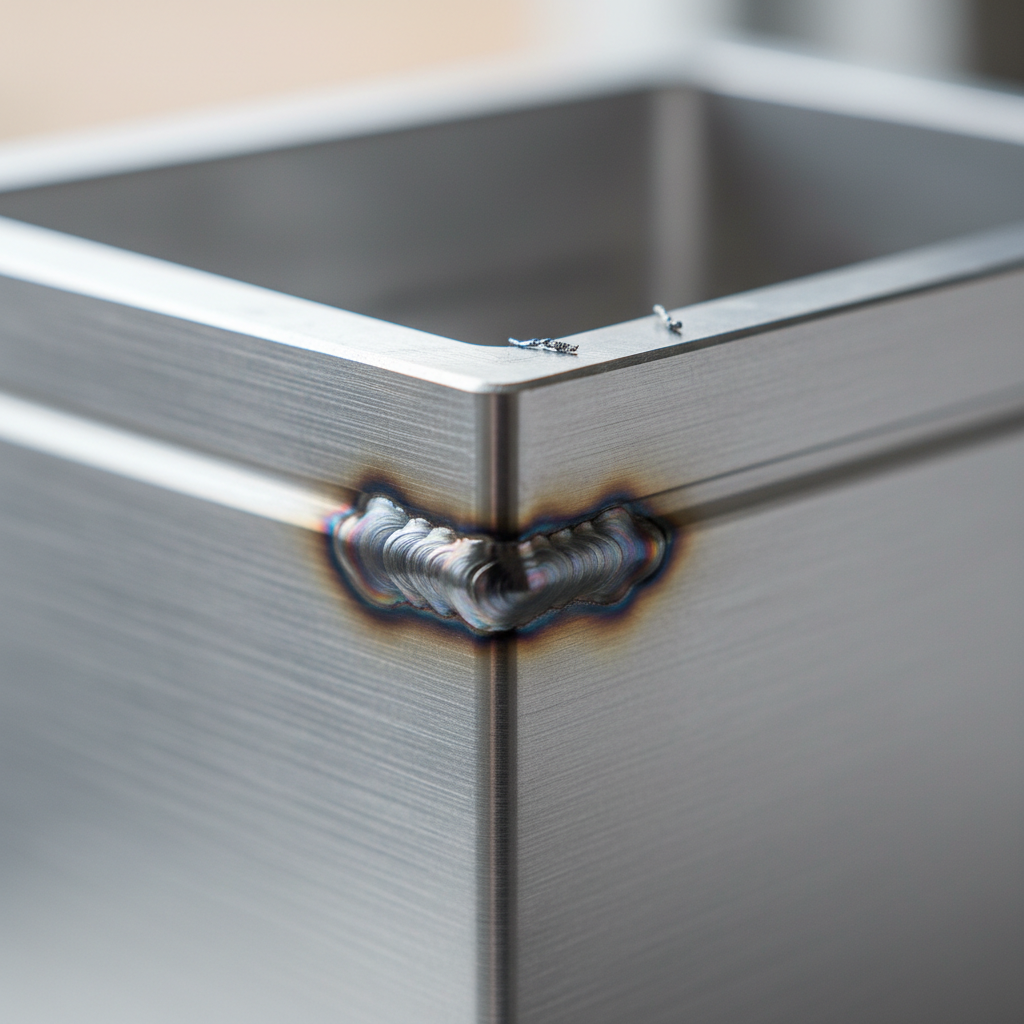

TIG weld · 18ga stainless

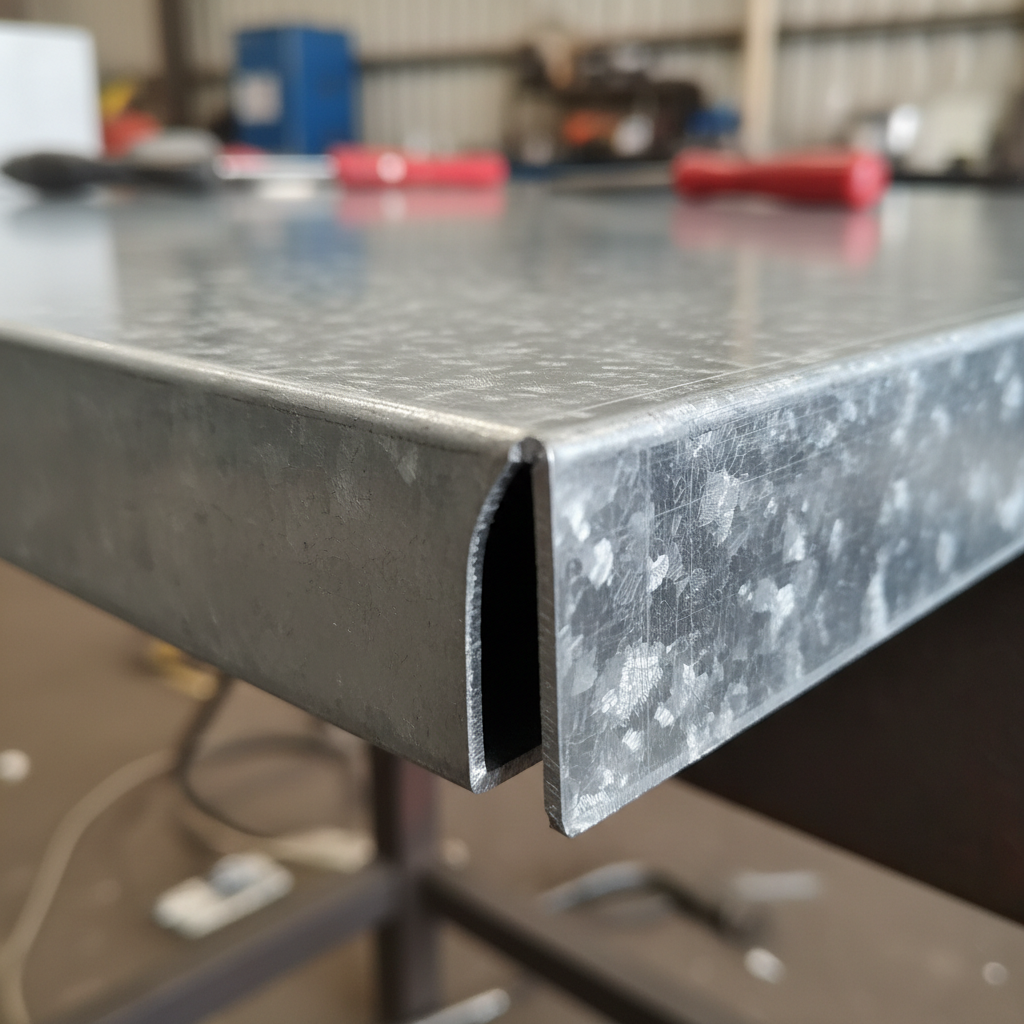

Tight radius bend · 16ga galvanized

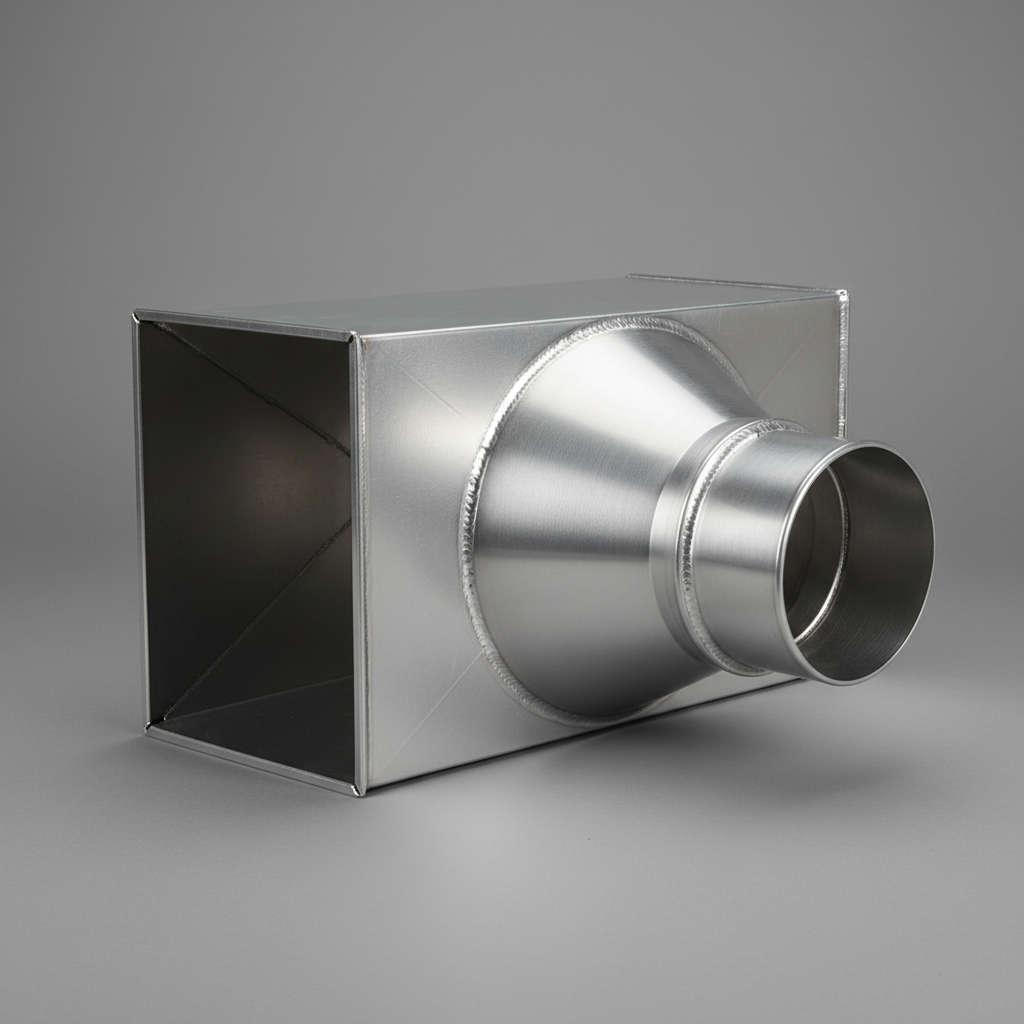

Custom HVAC transition · aluminum
What Gauge Means
for Your Project
Gauge is thickness — and thickness is the single biggest lever on cost, weight, and how long the finished piece holds its shape. Here's the working range.
16-gauge is the sweet spot for most architectural work — stiff enough to hold a flat plane without oil-canning, light enough that a two-person crew can handle 4×8 sheets without a lift.
Brake-Formed vs.
Roll-Formed
Both bend metal. They produce different shapes, tolerances, and cost structures — and choosing wrong means either paying for capability you don't need or getting a part that doesn't fit.

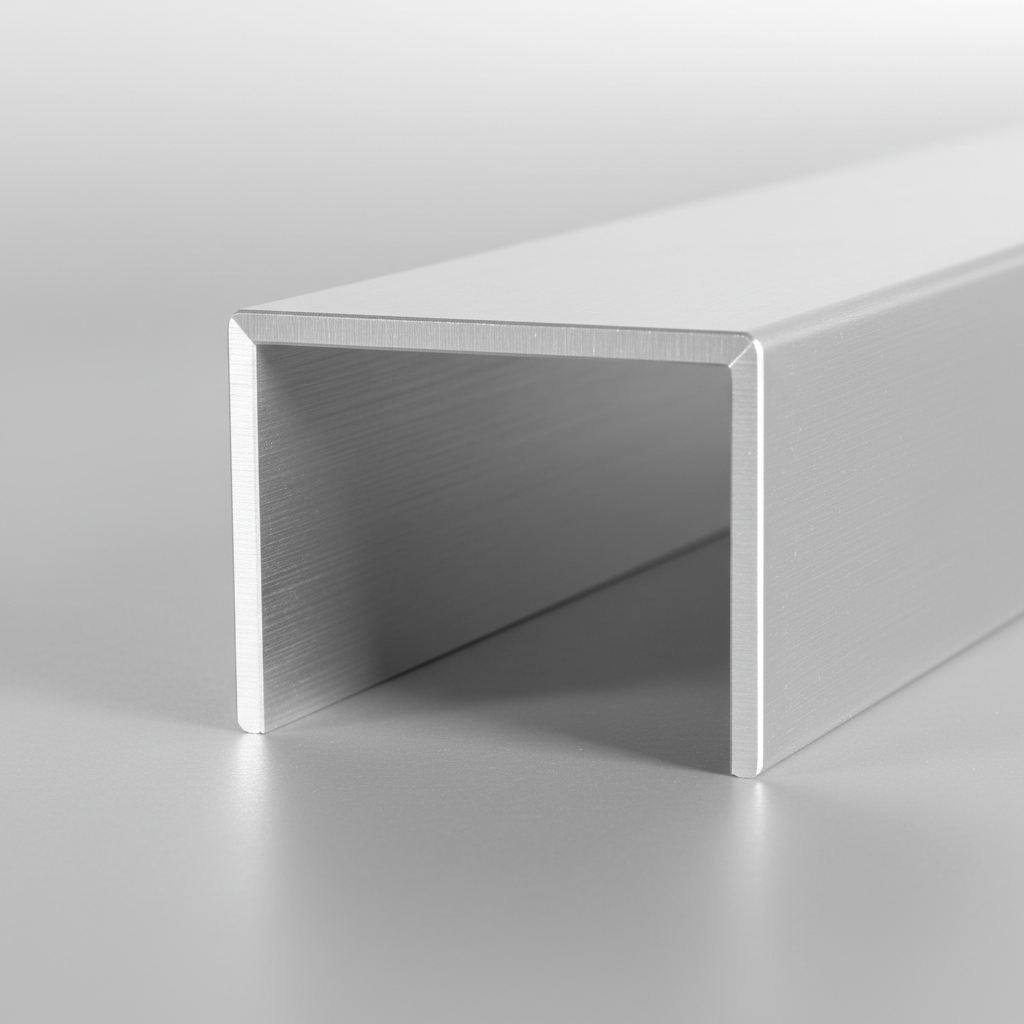

Brake-Formed
- →Sharp, precise bends
- →Ideal for one-offs & small runs
- →Angles from 0° to 180°
- →Tolerances to ±1/32"
- →Lower tooling cost
Best for
Panel flanges, Z-clips, custom trim, one-off transitions
Roll-Formed
- →Continuous curved profiles
- →Consistent cross-section
- →High-volume production
- →Radius bends & cylinders
- →Higher initial setup
Best for
Downspouts, radius fascia, curved column wraps
Quick Decision
If your part has a straight angle — brake it. If it curves continuously along its length — roll it. If it does both, it's a compound form and we need to talk before you order material.
What We Fabricate
Architectural Panels & Facades
Storefront cladding, rain screen panels, decorative soffits, column wraps, and custom facade systems. Designed to architect's drawings, fabricated flat or formed, delivered ready to install.
Custom Ductwork
Transitions, plenums, offsets, and radius elbows fabricated to mechanical drawings or field dimensions.
Decorative Custom
Copper hoods, range ventilation, ornamental metalwork, and one-off pieces built from reference photos.
Repairs & Mods
Patch existing ductwork, modify panels to fit field conditions, or repair damaged architectural metal.
Finished Work
Every edge broken by hand. Every seam ground smooth before it leaves the shop.

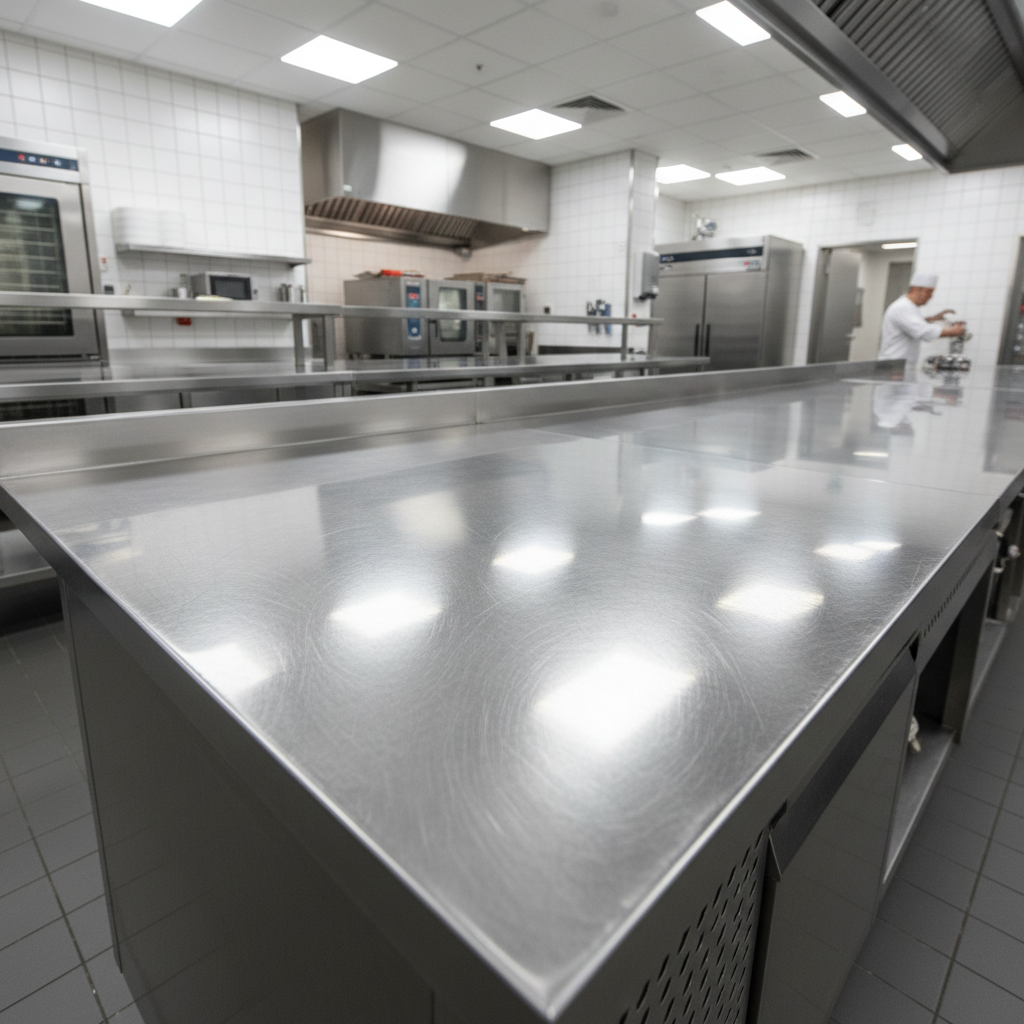

Mirror-polished countertop
Stainless · 16ga

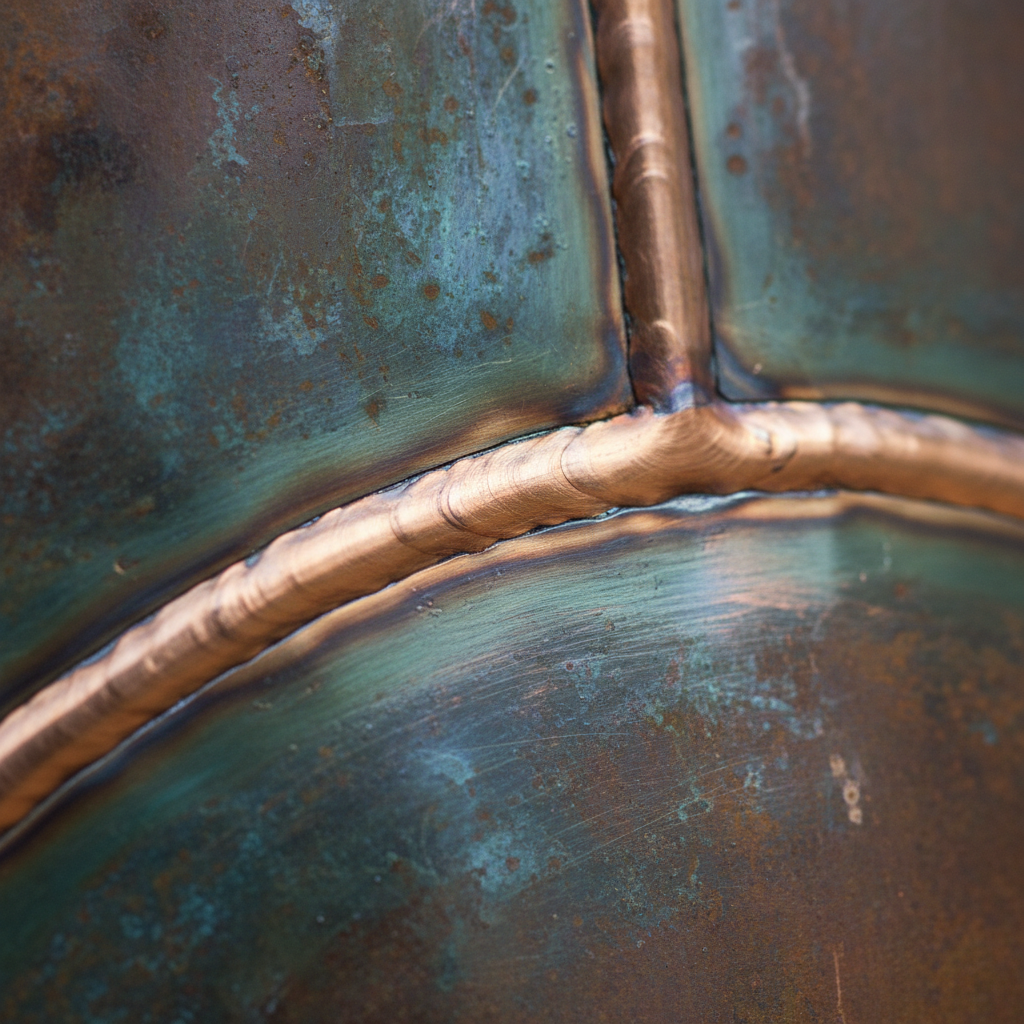

Hand-ground weld seam
Copper · 18ga
Storefront cladding panel
Aluminum · 14ga

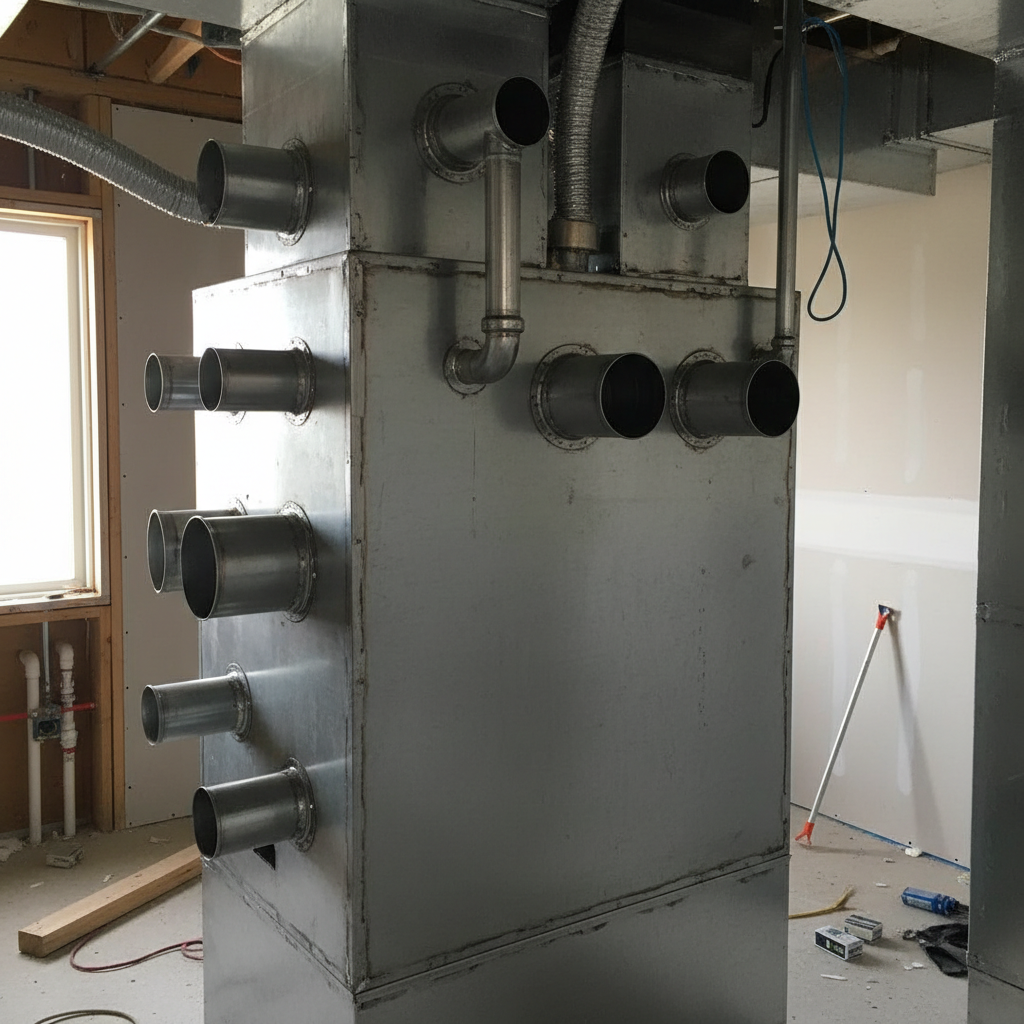

Custom plenum box
Galvanized · 20ga

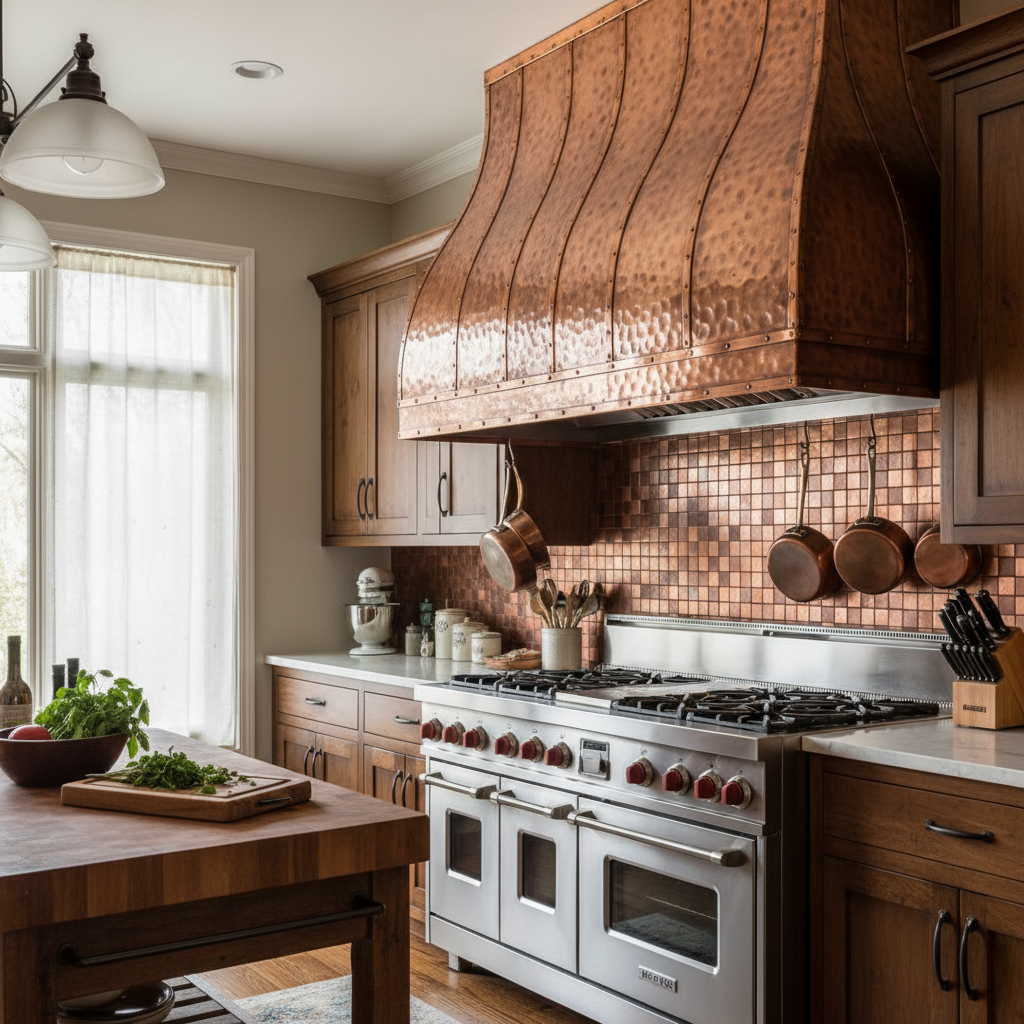

Decorative copper hood
Copper · 20ga
"The copper cladding panels came back with tolerances tighter than our shop drawings. Installed in a day. The GC asked for the fabricator's number before we even signed off."
Priya Nair, AIA
Principal · Nair + Holt Architecture Studio
Send Us Your Specs
The more detail you give, the faster we can turn around a number. Drawings, photos, field dimensions — anything helps. No job too small.
What Happens Next
Review your specs or question — usually same day
Follow-up if I need any clarification on dimensions or material
Flat-rate quote emailed within one business day
Schedule fab start once you approve
Prefer to Call?
For urgent jobs or jobs that are hard to describe in writing, a five-minute call usually gets to a number faster.
(555) 123-4567Mon–Fri, 7am–5pm
Shop Location
Serving the greater metro area
Pickup available by appointment · Delivery for large orders
